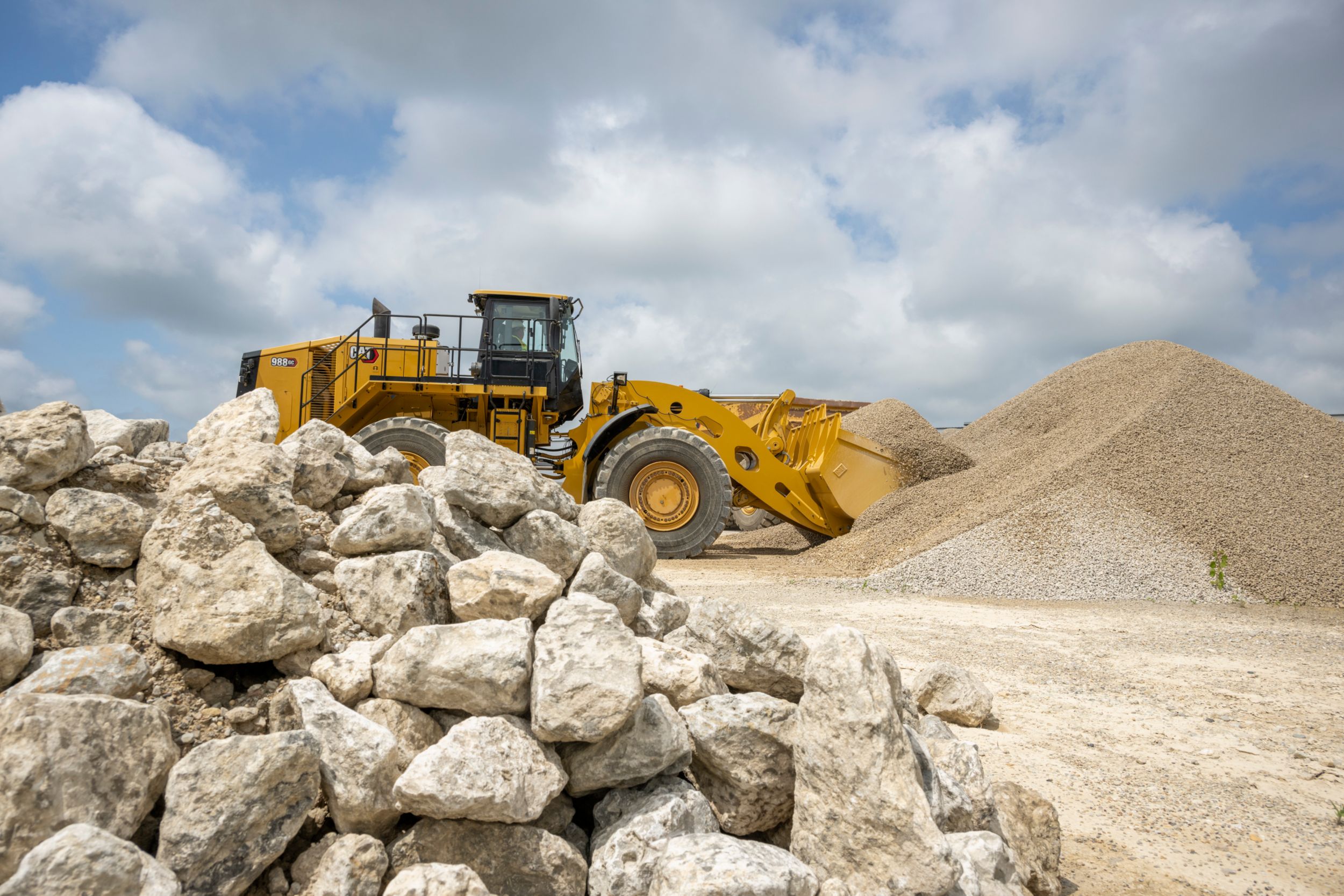

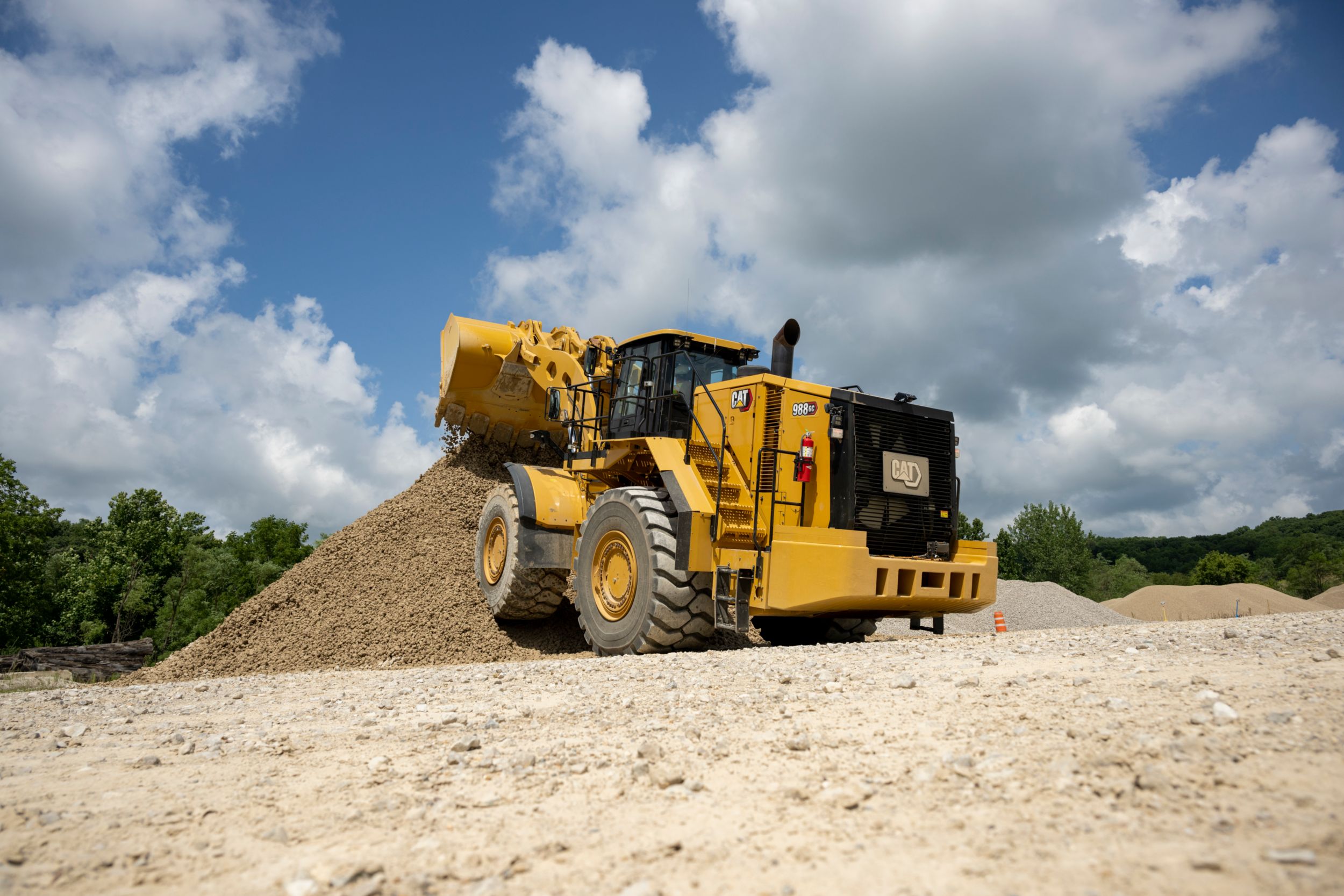

Specification
Value
Engine Model
Cat® C15
Rated Speed
2000
Peak Power Speed
1600
Engine Power - ISO 14396
449 HP
Gross Power - SAE J1995
456 HP
Net Power - SAE J1349
373 HP
Emissions
U.S. EPA Tier 4 Final, EU Stage V, and Japan 2014
Bore
5.4 in
Stroke
6.75 in
Displacement
927 in³
Peak Torque - 1,200 rpm - SAE J1995
1778 ft·lbf
Torque Rise
16%
Specification
Value
Operating Weight
116858 lb
Rated Payload - Quarry Face
12.5 ton (US)
Bucket Capacity Range
6.4-7.6 m3 (8.3-10 yd3)
Cat Truck Match - High Lift
772/773/775
Specification
Value
Transmission Type
Cat planetary power shift
Forward - 1
5 mile/h
Forward - 2
8 mile/h
Reverse - 1
5 mile/h
Reverse - 2
8 mile/h
Direct Drive - Forward 1
Lock-up disabled
Direct Drive - Forward 2
8 mile/h
Direct Drive - Forward 3
14 mile/h
Direct Drive - Forward 4
24 mile/h
Direct Drive - Reverse 2
9 mile/h
Direct Drive - Reverse 3
16 mile/h
Direct Drive - Reverse 4
25.4 mile/h
Direct Drive - Reverse 1
Lock-up disabled
Specification
Value
Lift/Tilt System - Circuit
EH - Load Sense
Lift/Tilt System
2X x 145 cc Variable displacement piston
Maximum Flow at 2,165 rpm
159 gal/min
Relief Valve Setting - Lift/Tilt
4598 psi
Cylinders, Double Acting - Lift, Bore and Stroke
190 mm x 1216 mm (7.5 in x 48 in)
Cylinders, Double Acting - Tilt, Bore and Stroke
170 mm x 722 mm (6.7 in x 28.4 in)
Pilot System
Variable displacement piston
Tilt Cylinder - Stroke
27 in
Specification
Value
Rack Back
3.8 s
Raise
7.5 s
Dump
3.0 s
Lower Float Down
4.6 s
Total Hydraulic Cycle Time - Empty Bucket
18.9 s
Specification
Value
Steering System - Circuit
Pilot, load sensing
Steering System - Pump
Piston, variable displacement
Maximum Flow
52 gal (US)
Relief Valve Setting - Steering
4000 psi
Total Steering Angle
70°
Steering Cycle Times - High Idle
3 s
Steering Cycle Times - Low Idle
5.2 s
Specification
Value
Air Conditioning
The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). The system contains 1.8 kg of refrigerant which has a CO2 equivalent of 2.574 metric tonnes.
Specification
Value
Front
Fixed
Rear
Trunnion
Oscillation Angle
+/-12.5°
Specification
Value
Brakes
ISO 3450:2011
Specification
Value
ROPS/FOPS
ROPS/FOPS meet ISO 3471:2008 and ISO 3449:2005 Level II standards
Specification
Value
Fuel Tank
141 gal (US)
Cooling System
27 gal (US)
Engine Crankcase
9 gal (US)
Diesel Exhaust Fluid Tank
5.5 gal (US)
Transmission
20 gal (US)
Differential - Final Drives - Front
49 gal (US)
Differential - Final Drives - Rear
45 gal (US)
Note
Cat U.S. EPA Tier 4 Final, EU Stage V, and Japan 2014 diesel engines are required to use ULSD (ultra-low sulfur diesel fuel with 15 ppm of sulfur or less) or ULSD blended with the following lower-carbon intensity fuels up to: - 20% biodiesel FAME (fatty acid methyl ester)* - 100% renewable diesel, HVO (hydrotreated vegetable oil) and GTL (gas-to-liquid) fuels. Refer to guidelines for successful application. Please consult your Cat dealer or “Caterpillar Machine Fluids Recommendations” (SEBU6250) for details. *Engines with no aftertreatment devices can use higher blends, up to 100% biodiesel. **For use of blends higher than 20% biodiesel, consult your Cat dealer
Specification
Value
Operator Sound Level (ISO 6396)
72 dB(A)
Machine Sound Level (ISO 6395)
110 dB(A)
Note (1)
The operator sound pressure level was measured according to the test procedures and conditions specified in ISO 6396:2008. The measurement was conducted at 70 percent of the maximum engine cooling fan speed.
Note (2)
Hearing protection may be needed when the machine is operated with a cab that is not properly maintained or when the doors or windows are open for extended periods or in a noisy environment.
Note (3)
The machine sound power level was measured according to the test procedures and conditions specified in ISO 6395:2008. The measurement was conducted at 70 percent of the maximum engine cooling fan speed.
Specification
Value
Ground to Top of ROPS
13.5 ft
Ground to Top of Exhaust Stacks
13.3 ft
Ground to Top of Hood
10.7 ft
Rear Axle - Centerline to Bumper
10.3 ft
Front Axle Centerline to Bucket Tip
15.7 ft
Wheel Base
12.5 ft
Maximum Overall Length
39.5 ft
Ground to Lower Hitch Clearance
1.5 ft
Clearance at Maximum Lift
12 ft
B-Pin Height - Maximum Lift
18.7 ft
Maximum Overall Height - Bucket Raised
25 ft
Reach - Maximum Lift
7.7 ft
Note
Specifications are calculated with 6.9 m3 (9.0 yd3 ) rock bucket equipped with Michelin XLDD1 35/65 R33 tires.
Specification
Value
Bucket Capacities
6.4-7.6 m3 (8.3-10 yd3)
Specification
Value
Recyclability
96%
