950

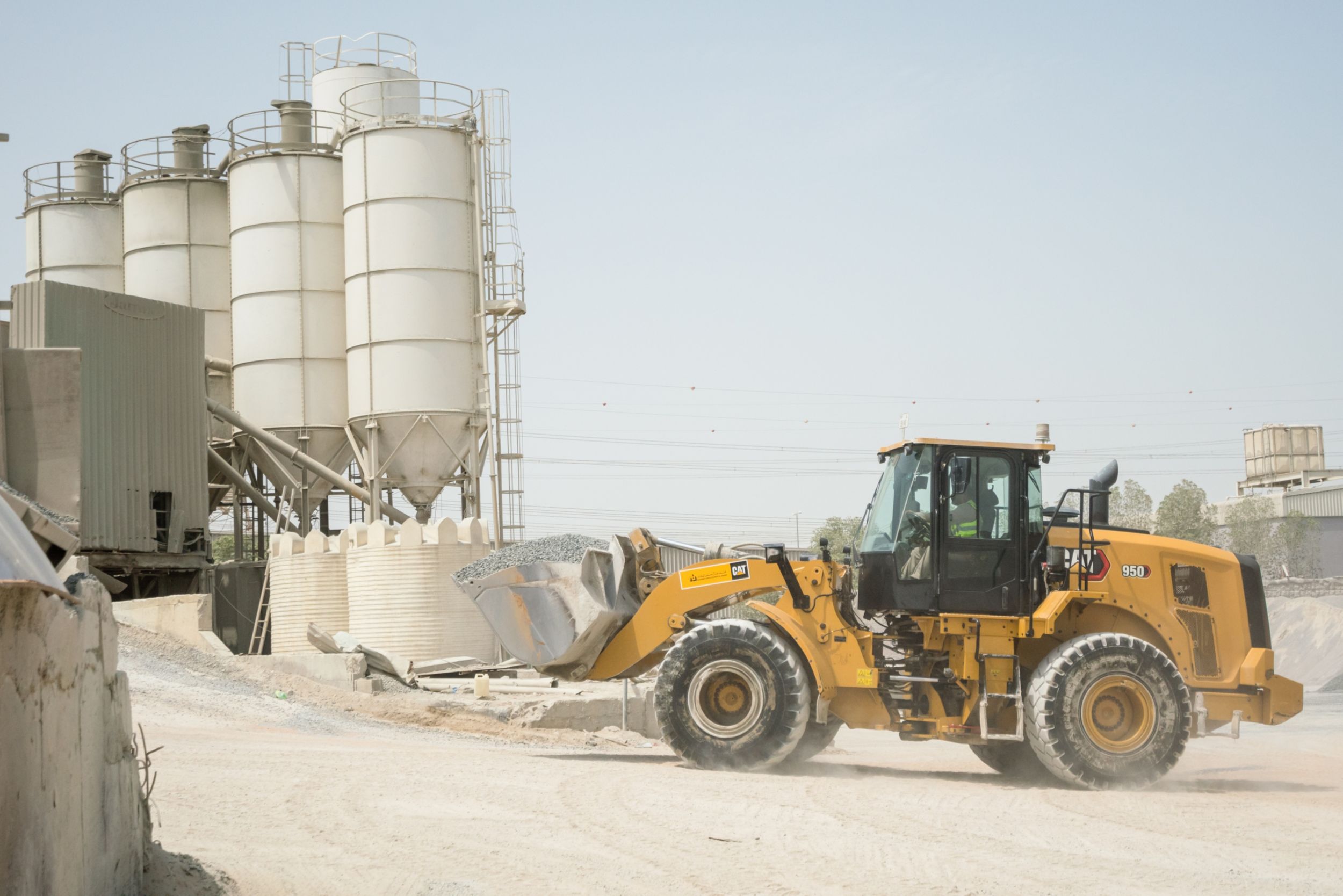

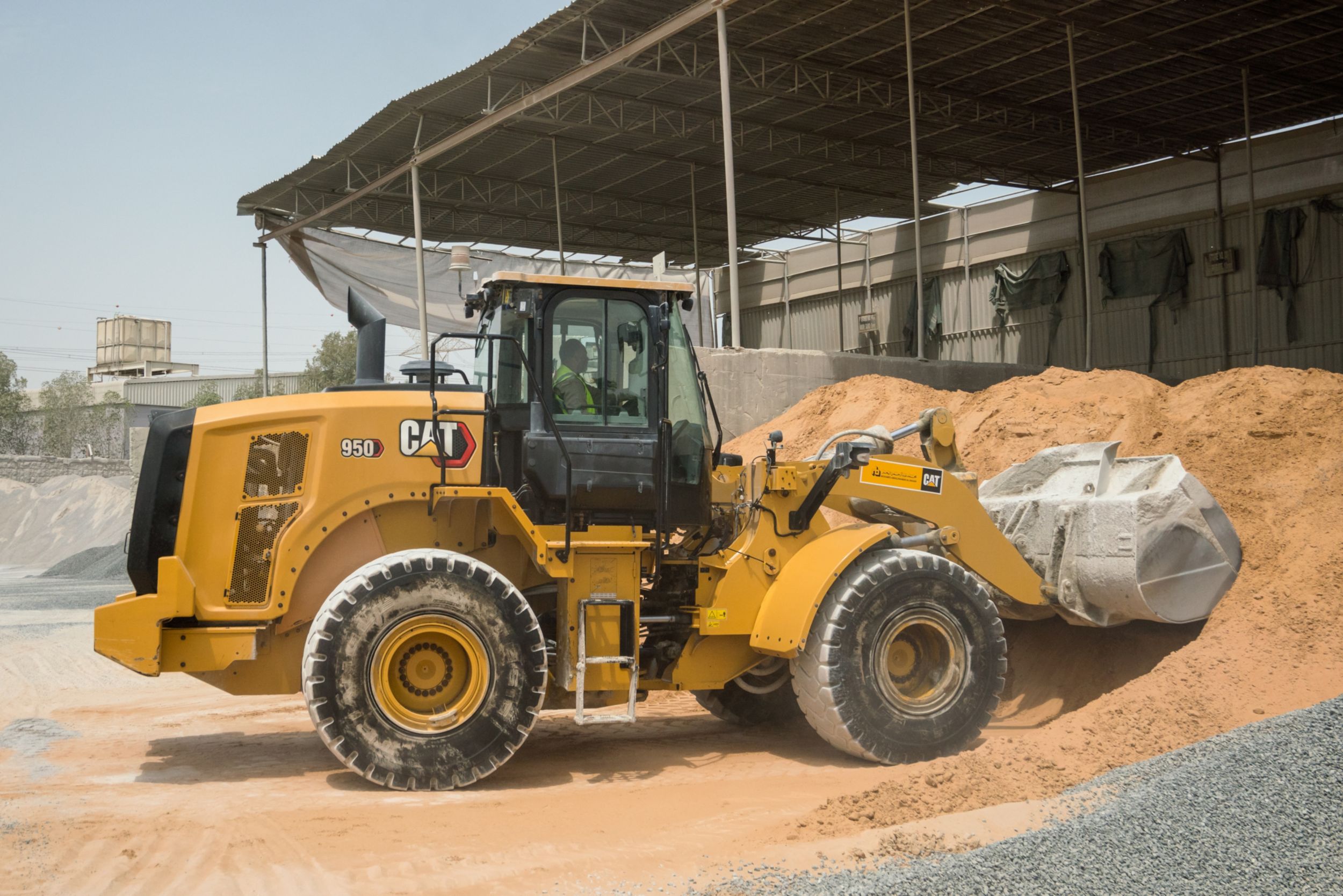

The Cat 950 Wheel Loader brings premium performance with simple-to-use technologies as a standard offering, boosting operator efficiencies and delivering consistent high bucket fill factors resulting in increased productivity. Extended service intervals lower maintenance costs. This machine is designed to meet emission standards without interrupting operation.Improved performance, reliability, durability, and versatility result in a machine that is built to meet your needs.
Maximum Power - 2,100 rpm - ISO 14396
249 HP
Engine Model
Cat C7.1
Maximum Gross Power - 2,100 rpm - SAE J1995
256 HP
Specification
Value
Maximum Power - 2,100 rpm - ISO 14396
249 HP
Engine Model
Cat C7.1
Maximum Gross Power - 2,100 rpm - SAE J1995
256 HP
Maximum Net Power - 2,100 rpm - ISO 9249
231 HP
Maximum Net Torque - 1,400 rpm
912 ft·lbf
Maximum Gross Torque - 1,400 rpm
927 ft·lbf
Maximum Net Torque - 1,300 rpm - ISO 9249
863 ft·lbf
Displacement
427 in³
Note
Cat engine meets Brazil MAR-1 and UN ECE R96 Stage IIIA emission standards, equivalent to U.S. EPA Tier 3 and EU Stage IIIA.
Note (1)
The net power advertised is the power available at the flywheel when the engine is equipped with fan, alternator, air cleaner, and aftertreatment.
Note (2)
Cat engines are compatible with diesel fuel blended with following lowercarbon intensity fuels up to: • 100% biodiesel FAME (fatty acid methyl ester)* • 100% renewable diesel, HVO (hydrogenated vegetable oil) and GTL (gas-to-liquid) fuels Refer to guidelines for successful application. Please consult your Cat dealer or “Caterpillar Machine Fluids Recommendations” (SEBU6250) for details. *For use of blends higher than 20% biodiesel, consult your Cat dealer.
Specification
Value
Operating Weight
39851 lb
Note
Weight based on a machine configuration with with Parallel lift z-bar linkage, Bridgestone 23.5R25 VJT L3 radial tires, full fluids, operator, standard counterweight, ride control cold start, roading fenders, Product Link, front manual differential/open rear axles, power train guard, secondary steering, sound suppression, and a 3.1 m³ (4.1 yd³) general purpose bucket with BOCE.
Specification
Value
Forward - 1
4.3 mile/h
Forward - 2
7.5 mile/h
Forward - 3
12 mile/h
Forward - 4
16 mile/h
Forward - 5
24.5 mile/h
Reverse - 1
4.3 mile/h
Reverse - 2
7.5 mile/h
Reverse - 3
16 mile/h
Note
Maximum travel speed in standard vehicle with empty bucket and standard L3 tires with 787 mm (31 in) roll radius
Specification
Value
Operator Sound Pressure Level - ISO 6396:2008
72 dB(A)
Exterior Sound Power Level - ISO 6395:2008
107 dB(A)
Operator Sound Pressure Level - ISO 6396:2008 ¹
69 dB(A)
Exterior Sound Power Level - ISO 6395:2008 ¹
104 dB(A)
Note
¹Including countries that adopt the EU and UK Directives.
Note (1)
¹Exterior Sound Power Level - European Union Directive 2000/14/EC and UK Noise Regulation 2001 No. 1701
Specification
Value
Air Conditioning
The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). The system contains 1.6 kg (3.5 lb) of refrigerant which has a CO2 equivalent 2.288 metric tonnes (2.522 tons).
Specification
Value
Static Tipping Load - Full 40° Turn - With Tire Deflection
24110 lb
Static Tipping Load - Full 40° Turn - No Tire Deflection
25642 lb
Breakout Force
34171 lbf
Note
For a machine configuration as defined under “Weight.”
Note (1)
Full compliance to ISO 14397-1:2007 Sections 1 thru 6, which requires 2% verification between calculations and testing.
Specification
Value
Fuel Tank
68.6 gal (US)
DEF Tank
4 gal (US)
Cooling System
14.3 gal (US)
Crankcase
5.5 gal (US)
Transmission
11.4 gal (US)
Differential - Final Drives - Front
11.4 gal (US)
Differential - Final Drives - Rear
11.4 gal (US)
Hydraulic Tank
25.6 gal (US)
Specification
Value
Implement System - Maximum Pump Output at 2,340 rpm
85 gal/min
Implement System - Maximum Operating Pressure
4047 psi
Hydraulic Cycle Time - Total
9.8 s
Specification
Value
Height - Top of Hood
8.83 ft
Height - Top of ROPS
11.33 ft
Ground Clearance
1.08 ft
Wheel Base
11 ft
Overall Length - Without Bucket
22.25 ft
Hinge Pin Height at Carry Height
2 ft
Hinge Pin Height at Maximum Lift
13 ft
Lift Arm Clearance at Maximum Lift
11.08 ft
Rack Back - Maximum Lift
60 °
Rack Back - Carry Height
49 °
Width over Tires (Loaded)
9.33 ft
Tread Width
7 ft
Note
All dimensions are approximate and based on machine equipped with 3.1 m3 (4.1 yd3 ) general purpose bucket with BOCE and Bridgestone 23.5R25 VJT L3 radial tires.
Specification
Value
Height - Top of Hood
8.83 ft
Height - Top of ROPS
11.33 ft
Ground Clearance
1.08 ft
Wheel Base
11 ft
Overall Length - Without Bucket
24.50 ft
Hinge Pin Height at Carry Height
2.42 ft
Hinge Pin Height at Maximum Lift
14.67 ft
Lift Arm Clearance at Maximum Lift
12.33 ft
Rack Back - Maximum Lift
65 °
Rack Back - Carry Height
54 °
Width over Tires (Loaded)
9.33 ft
Tread Width
7 ft
Note
All dimensions are approximate and based on machine equipped with 3.1 m3 (4.1 yd3 ) general purpose bucket with BOCE and Bridgestone 23.5R25 VJT L3 radial tires.
- Cat C7.1 engine offers high power density with a combination of proven electronics, fuel, and air systems.
- Features an electric fuel priming pump, fuel-water separator, and secondary filtration system.
- Thorough component design and machine validation processes result in unmatched reliability and uptime.
- Heavy-duty transmission and axles designed to handle extreme applications.
- Automatic countershaft powershift (5F/3R) transmission features durable, long-lasting components.
- Full-flow hydraulic filtration system with additional kidney-loop filtration improves hydraulic system reliability and component life.
- Next Generation implement pump increases flow at lower engine speeds and improves hydraulic response.
- Next-generation, easily adjustable seat and suspension for improved operator comfort. It comes in three trim levels and can be equipped with a 4-point harness (kit).
- Increased legroom and adjustable seat controls for increased comfort and efficiency.
- Automatic air conditioning system keeps the cab temperature as desired.
- New in-cab dashboard and high-resolution touch display(s) are easy to use, intuitive, and user friendly.
- Sound suppression, seals, and viscous cab mounts decrease noise and vibration for a quieter work environment.
- The standard HMU steering wheel provides precision control, resulting in excellent comfort and accuracy. An optional seat-mounted electro-hydraulic joystick steering system (replaces the HMU steering wheel) is also available in many regions.
- The next generation of ride control works as a shock absorber, improving ride quality over rough terrain.
- Standard Cat technologies to monitor, manage, and enhance your jobsite operations.
– Product Link™ wirelessly connects the machine to the office, giving you access to production and essential health information needed to make timely, fact-based decisions to help you better run your business.
– New Autodig allows the operator to fully automate bucket loading to improve fill factors and loading time.
– Auto Set Tires promotes proper loading technique, significantly reducing tire slip and tire wear.
- Optional Cat Advanced Payload with Assist*:
– Enhanced lists management, site integration, and extended scale features to help manage and improve productivity and profitability of operations.
- Optional Cat Productivity subscription provides detailed and comprehensive actionable information to help you manage and improve the productivity and profitability of your operations.
- New Autodig with Auto Set Tires for consistent high bucket fill factors deliver up to 10% more productivity compared to previous Cat model.
- 5-speed transmission and lock-up clutch torque converter, power trains deliver smooth shifting, fast acceleration, and speed on grade for greater performance and fuel efficiency.
- Single clutch and lock-to-lock shifting for faster acceleration and speed on grades.
- Z bar* linkage provides high breakout force at ground level.
- Optimized Z bar* linkage offers parallel lift capability for precise work tool control.
- Performance Series Buckets utilize a system-based approach to balance bucket shape against the machine’s linkage, resulting in higher fill factors and better material retention when compared with other buckets of the same rated capacity.
- Application Profiles optimize machine settings for different applications at one push of a button.
- Job Aids help operators improve and optimize their operating skills.
- Automatic engine idle shutdown system significantly reduces idle time, overall operating hours, and fuel consumption.
- Deeply integrated engine, power train, and hydraulic systems deliver unmatched productivity and fuel efficiency.
- Optional differential locks are activated on-the-go, which improves traction, resulting in increased productivity while reducing tire scuffing for reduced operating costs.
- Fusion™ Quick Coupler allows for easy tool changes without leaving the cab, letting the machine move quickly from task to task.
- Extended fluid and filter change intervals reduce maintenance costs by up to 30%.*
- Convenient access to hydraulic and electrical service centers for easy ground-level servicing.
- Remote Troubleshoot can connect the machine to the dealer service department to help diagnose problems quickly so you can get back to work.
- Remote Flash works around your schedule to ensure your machine’s software is up to date for optimal performance.
- The Cat App helps you manage fleet location, hours, and maintenance schedules; it also alerts you for required maintenance and allows you to request service from your local Cat dealer.
- One-piece tilting hood makes engine compartment access fast and easy.
- Optional Integrated Autolube extends component and service life.
- Rear-vision camera enhances visibility behind the machine, helping you work safely and confidently.
- Cab access with wide door, optional remote door opening, and inclined steps add solid stability.
- Floor-to-ceiling windshield, large mirrors with integrated spot mirrors, and rear-vision camera provide industry leading all-around visibility.
- Computerized monitoring system includes several warning indicators.
- Monitored seat belt is standard and can be enhanced with an optional exterior indicator.
- Optional multiview (360˚) vision system helps the operator monitor the surroundings of the machine at all times.
- Optional Cat Detect radar technology enhances awareness by monitoring the working environment and alerts operators to hazards.
- Optional access light and under-hood service light system to provide illuminated access to the machine and daily checks even in the dark.
- Application-specific arrangements direct from the factory for optimized performance and added durability in the toughest applications, including:
– Forestry model increases lift and tilt capacities for efficient and productive log and chip handling in paper, pellet, and sawmills.
– Steel mill model is designed for the challenging work environment of steel mills and slag handling applications, incorporating an added level of safety.
